Surveying is a profession built on accuracy and careful measurement. Every line drawn on a map or marked on the ground must represent real-world positions with confidence and precision.
Even with advanced digital instruments available today, traditional tools still support reliable fieldwork. One of the most dependable among them is the plumb bob, a simple device that continues to serve surveyors and builders alike.
Quick Bio Table
| Feature | Details |
|---|---|
| Tool Name | Plumb Bob |
| Primary Use | Establishing vertical reference line |
| Field | Surveying and Construction |
| Working Principle | Gravity-based alignment |
| Main Function | Centering instruments over station marks |
| Common Materials | Brass and Steel |
| Shape | Pointed weighted cone |
| Power Requirement | No external power needed |
| Accuracy | High when stable |
| Used With | Theodolite and Total Station |
| Key Advantage | Simple and reliable |
| Main Limitation | Sensitive to wind movement |

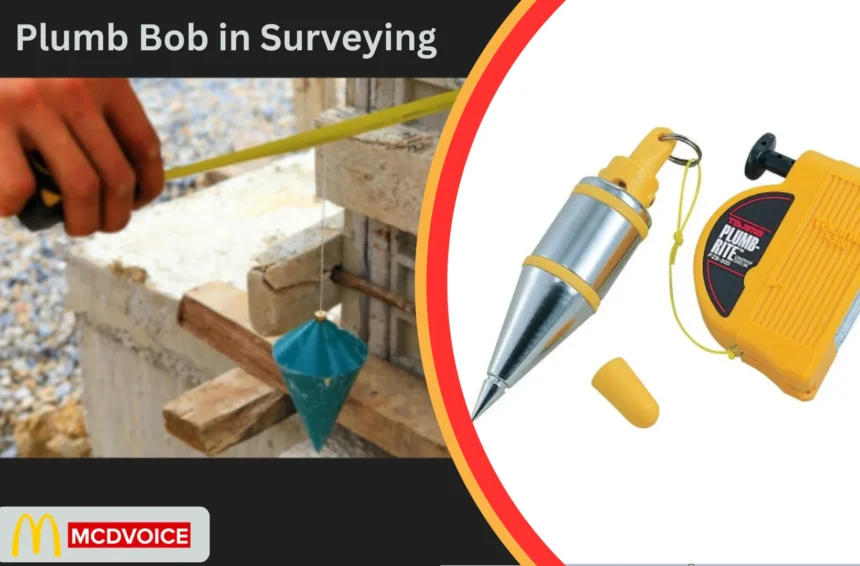

What Is a Plumb Bob
A plumb bob is a pointed metal weight attached to a cord. When suspended freely, it aligns itself vertically under the force of gravity. Because of this, the pointed tip marks the exact position directly beneath the suspension point. Therefore, it is extremely useful for transferring or confirming vertical alignment in surveying tasks.
People Also Read : How to Claim Your Free Burlington Gift Card Through the BurlingtonFeedback Survey
How It Works
The working principle of a plumb bob is based entirely on gravity. Gravity pulls the weighted object toward the center of the Earth, forming a straight vertical line. Since gravity is constant, the vertical line created by the plumb bob is naturally accurate. As long as the bob remains steady and is not disturbed by wind, it provides dependable alignment.
Use in Instrument Centering
One of the primary uses of a plumb bob in surveying is centering instruments. Before taking measurements, a theodolite or total station must be positioned exactly above a known station mark. To do this, the surveyor suspends the plumb bob from the tripod or instrument head. Then, by adjusting the tripod legs, the pointed tip is aligned precisely over the ground mark.
Importance in Land Surveys
In boundary and control surveys, precision is critical. A small centering error can affect angles and distances, especially over long measurements. To minimize this risk, the plumb bob provides a clear visual reference. Consequently, it ensures that the instrument is correctly positioned before observations begin.
Role in Construction Work
The plumb bob is not limited to land surveying. It is widely used in construction to check vertical alignment of walls, columns, and structural elements. In fact, builders rely on it to confirm that surfaces are perfectly vertical. This practice helps maintain structural stability and visual accuracy in completed projects.
Benefits of Simplicity
One of the greatest strengths of the plumb bob is its simplicity. It does not require batteries, calibration, or technical adjustments. Because it has no electronic components, it cannot fail due to power loss. Therefore, it remains reliable in remote areas or challenging field conditions.

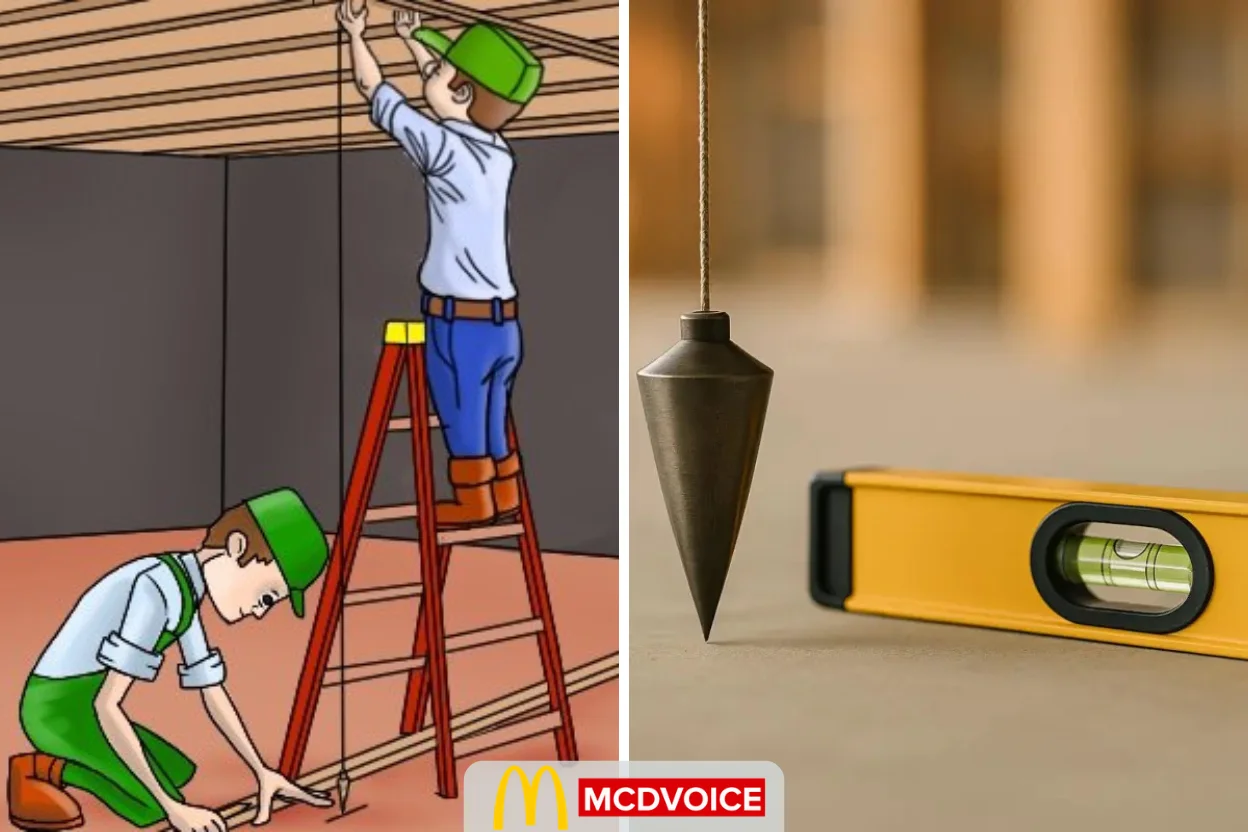

Transferring Points Between Levels
In multi-story construction, alignment must be consistent from one level to another. The plumb bob allows accurate transfer of layout points from upper floors to lower ones. By suspending the bob through an opening, workers can project a point directly downward. As a result, this maintains alignment throughout the building process.
Durability and Cost
Plumb bobs are usually made from brass or steel. Their solid construction allows them to withstand rough handling on construction sites. Moreover, they are affordable compared to modern optical or laser centering devices. This affordability makes them accessible to students and professionals alike.
Limitations in Practice
Despite its advantages, the plumb bob can be affected by wind. Movement in the cord may require time for stabilization before final alignment. Additionally, manual centering takes slightly longer than using laser plummets. However, experienced surveyors manage these challenges with proper technique.
Modern Alternatives
Many modern instruments include built-in optical or laser plummets. These tools project a visible point onto the ground for faster setup. Nevertheless, electronic systems rely on power and calibration. Therefore, when such systems fail, the plumb bob remains a dependable backup.
Training and Fundamentals
Surveying students often learn to center instruments manually using a plumb bob. This builds a strong understanding of alignment and measurement accuracy. By learning these fundamentals, students develop careful observation and professional discipline. Ultimately, these qualities remain essential regardless of technological advancement.
People Also Read : How to Earn Free Krispy Kreme Gift Cards with KrispyKremeListens Survey
Conclusion
The plumb bob may appear simple, but its contribution to surveying and construction is significant. It provides a true vertical reference that supports accurate measurement and alignment.
In a field where precision defines success, dependable tools matter. The plumb bob continues to prove that even the simplest instruments can hold lasting value.
Frequently Asked Questions
What is a plumb bob used for in surveying?
A plumb bob is used to establish a true vertical line in surveying work. It helps position instruments accurately over a ground station point to ensure precise measurements.
Why is vertical alignment important in surveying?
Vertical alignment ensures that horizontal angles and distances are measured correctly. Even a small centering error can affect the overall accuracy of a survey project.
Is a plumb bob still used with modern total stations?
Yes, many surveyors still carry a plumb bob in the field. It serves as a reliable backup when optical or laser plummets are not practical.
What materials are plumb bobs commonly made from?
Plumb bobs are typically made from brass, steel, or other dense metals. The weight and pointed tip help maintain steady vertical alignment.
What are the main limitations of a plumb bob?
The tool can be affected by wind, which causes the string to sway. It may also take slightly longer to set up compared to laser-based centering systems.
