Surveying is the heart of any construction or civil engineering project. At its core, levelling helps find differences in elevation between points. Modern instruments like automatic levels and total stations give high precision, but there’s a simple tool that surveyors often carry for quick checks: the hand level. It is portable, easy to use, and ideal for preliminary field work.
A hand level is a compact levelling instrument. It combines a spirit bubble vial with a sighting device, allowing a surveyor to find approximate horizontal lines of sight. Unlike automatic levels, it doesn’t need a tripod, making it perfect for rough measurements and quick assessments.
Quick Bio Table
| Feature | Details |
|---|---|
| Instrument Name | Hand Level |
| Type | Optical Surveying Instrument |
| Primary Use | Measuring elevation differences |
| Accuracy | Moderate (suitable for quick surveys) |
| Components | Telescope, spirit vial, tripod (optional) |
| Material | Metal or durable plastic |
| Skill Level | Beginner-friendly |
| Common Applications | Construction, landscaping, small engineering projects |
| Advantages | Portable, easy to use, lightweight |
| Limitations | Less precise than dumpy level or total station |
| Setup Time | Quick |
| Maintenance | Minimal; keep vial clean and level calibrated |
| Cost Range | Affordable, budget-friendly for fieldwork |

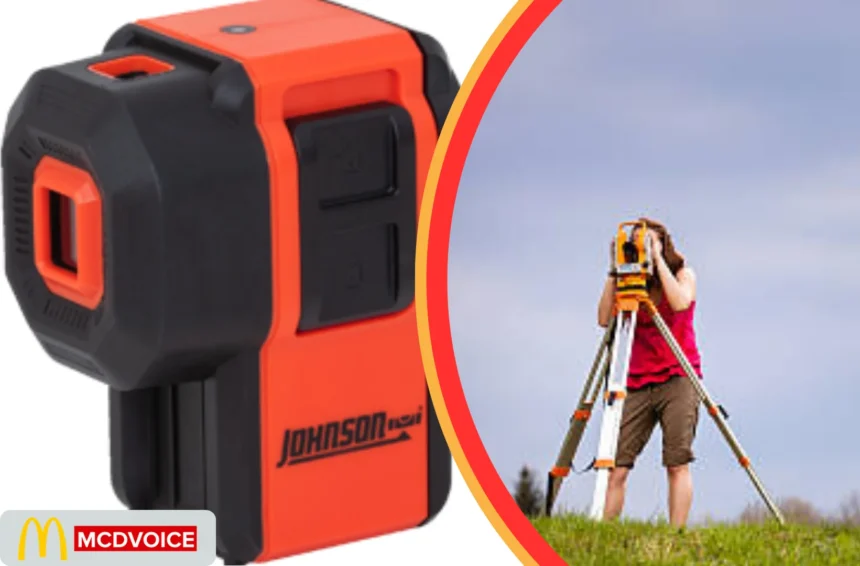

What Is a Hand Level?
The hand level usually has a tube or small telescope with a bubble vial attached. It includes a sighting aperture or eyepiece and an index line inside the sight tube. These features allow a surveyor to quickly align their line of sight with a horizontal reference.
Though it lacks the accuracy of advanced levels, its portability and ease of use make it a popular choice. Fieldworkers can carry it in a pocket or small kit without adding weight. Its main strength is giving fast elevation estimates in the field.
People Also Read : Take the Pizza Hut Survey for a Chance to Earn a Free Gift Card
Why Hand Levels Matter
Hand levels are valuable for quick rough levelling. When checking if two points are approximately on the same level, they save time and effort. This is especially helpful during initial site assessments and preliminary surveys.
They are also useful in construction tasks such as grading, laying fences, or setting foundations. By providing a quick reference line, hand levels help ensure that work is consistent with planned elevations. Contractors and landscapers often rely on them for efficiency.
How a Hand Level Works
Using a hand level is straightforward. The instrument is held at eye level, with the bubble vial visible through the sighting tube. The surveyor then scans toward a reference point, such as a staff or rod, to check the horizontal alignment.
The bubble is centered by adjusting the angle of the level. When the bubble rests in the middle, the sight line is considered horizontal. Fieldworkers often rest the level on a pole or staff to reduce hand movement and increase stability during measurements.

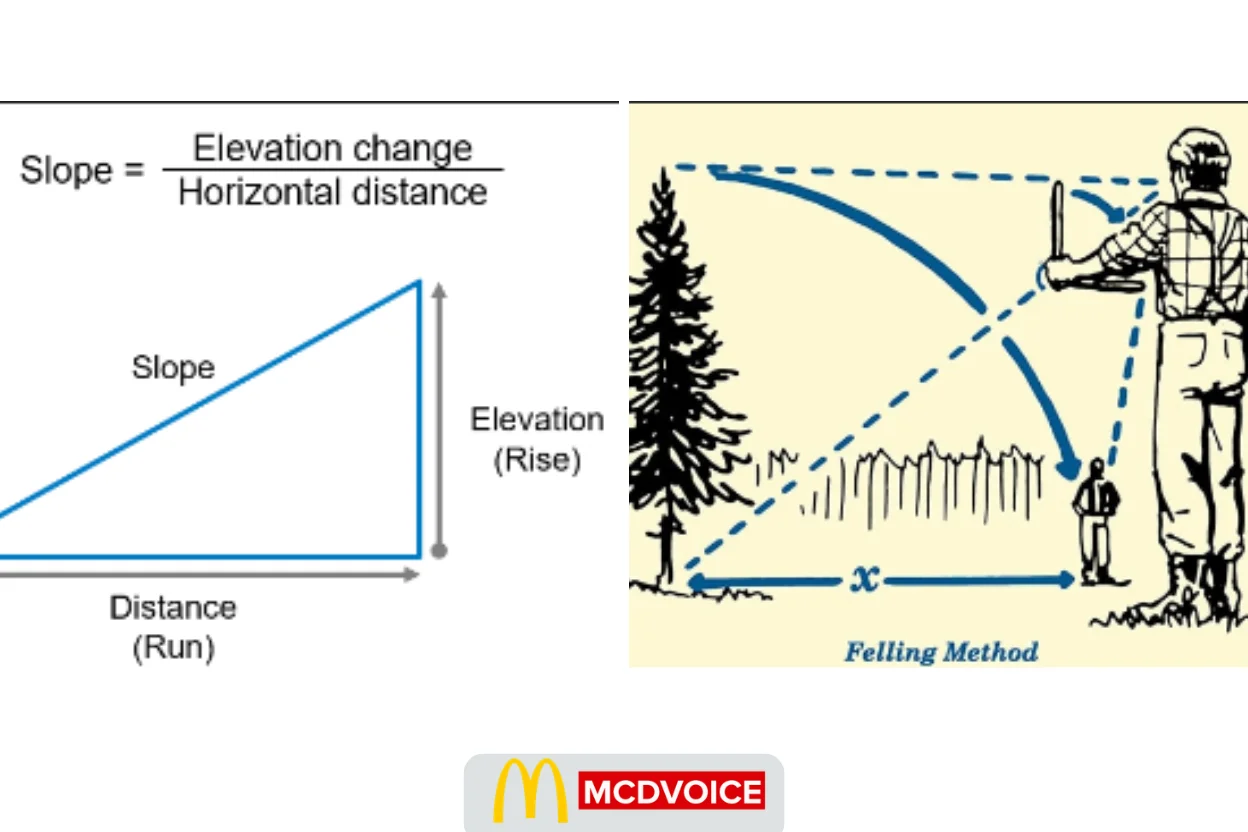

Estimating Distance and Slope
Hand levels can also help estimate distances. When paired with a sighting rod, they allow the surveyor to approximate horizontal spacing between points. Some levels even have stadia lines for this purpose, though results remain rough estimates.
Slope measurements are possible as well. By combining the elevation difference with a measured horizontal distance, workers can calculate the gradient of terrain. This is useful for grading roads, drainage lines, and other open ground projects where approximate slope is sufficient.
Pros and Cons of Hand Levels
Hand levels are lightweight and highly portable, making them easy to carry throughout a job site. They are quick to set up and affordable compared to precision instruments, allowing for fast preliminary checks.
However, their accuracy is limited. They are effective only over short distances and require a steady hand for best results. Despite these limitations, their speed and convenience make them indispensable for rough field levelling.
Best Practices for Field Use
Stabilizing the instrument improves accuracy. Resting the hand level on a staff, pole, or flat surface helps minimize errors caused by shaky hands. Taking multiple readings and averaging them further reduces mistakes.
Using a graded rod or staff alongside the hand level makes measurements easier. Consistent readings are more reliable when both the tool and the reference are aligned. These practices ensure that hand level results are as accurate as possible in a rough field environment.
When to Choose a Hand Level
Hand levels are ideal for tasks that don’t demand high precision. Small landscaping jobs, quick site checks, or preliminary survey work benefit from their simplicity. They save time by providing immediate feedback without complex setup.
While total stations and automatic levels are necessary for detailed engineering work, the hand level serves as a supporting tool. It offers speed, portability, and convenience for everyday fieldwork, especially when rough measurements suffice.
People Also Read : Take the Advance Auto Parts Survey for a Chance to Win a Free Gift Card
Conclusion
The hand level in surveying remains an essential tool for fieldwork. Its simplicity allows surveyors and construction workers to make quick elevation checks and preliminary measurements. While it doesn’t replace precision instruments, it supports faster, more efficient workflows on site.
Mastering the hand level provides a strong foundation in surveying. It teaches basic principles of levelling and helps fieldworkers understand elevation and slope in practical, hands-on terms. For anyone involved in construction or land development, it is a tool worth carrying at all times.
Frequently Asked Questions
What is a hand level in surveying?
A hand level is a small, portable instrument used to measure elevation differences in surveying.
How accurate is a hand level?
It provides moderate accuracy, suitable for quick leveling and preliminary surveys.
What materials is a hand level made of?
Most hand levels are made of durable metal or plastic with a spirit vial for leveling.
Can a beginner use a hand level?
Yes, it is simple to use and ideal for beginners in surveying.
Where is a hand level commonly used?
It is used in construction, landscaping, and small-scale engineering projects for leveling purposes.
